Bitwise Operations in Go

In the below Go file we use bitwise operators to manipulate individual flags (on/off switches) in a single integer, where each bit position represents a different status.

First we’ll look at the code, and then we’ll explain how it works:

package main

import (
    "fmt"
    "strings"
)

// Define bit flags as constants, where each status is represented by a unique bit position
const (
    StatusActive   = 1 << iota // 1 << 0 which is 0001 (binary)
    StatusAdmin                // 1 << 1 which is 0010
    StatusBanned               // 1 << 2 which is 0100
    StatusVerified             // 1 << 3 which is 1000
)

// Stringify statuses for easier output
func stringifyStatus(status int) string {
    statuses := []string{}

    if status&StatusActive != 0 {
        statuses = append(statuses, "Active")
    }
    if status&StatusAdmin != 0 {
        statuses = append(statuses, "Admin")
    }
    if status&StatusBanned != 0 {
        statuses = append(statuses, "Banned")
    }
    if status&StatusVerified != 0 {
        statuses = append(statuses, "Verified")
    }

    return strings.Join(statuses, ", ")
}

func main() {
    // Let's create a user status and use bitwise OR to combine different flags

    var userStatus int

    // Set the user as active and verified
    userStatus |= StatusActive | StatusVerified
    fmt.Println("Initial Status:", stringifyStatus(userStatus))

    // Add "Admin" status
    userStatus |= StatusAdmin
    fmt.Println("After adding Admin:", stringifyStatus(userStatus))

    // Remove "Verified" status using bitwise AND with NOT
    userStatus &^= StatusVerified
    fmt.Println("After removing Verified:", stringifyStatus(userStatus))

    // Add "Banned" status
    userStatus |= StatusBanned
    fmt.Println("After adding Banned:", stringifyStatus(userStatus))

    // Check if the user is an admin
    if userStatus&StatusAdmin != 0 {
        fmt.Println("User is an admin.")
    } else {
        fmt.Println("User is NOT an admin.")
    }

    // Remove "Admin" status using bitwise AND with NOT
    userStatus &^= StatusAdmin
    fmt.Println("After removing Admin:", stringifyStatus(userStatus))

    // Check if the user is banned
    if userStatus&StatusBanned != 0 {
        fmt.Println("User is banned.")
    } else {
        fmt.Println("User is NOT banned.")
    }

    // Check if the user is an admin
    if userStatus&StatusAdmin != 0 {
        fmt.Println("User is an admin.")
    } else {
        fmt.Println("User is NOT an admin.")
    }
}

Visualising Bits

In case you need a reminder of what bit alignment and shifting look like, take a look at the following diagram: which shows a byte consists of 8 bits:

graph TD
    %% Define Styles
    classDef byteContainer fill:#f9f9f9,stroke:#333,stroke-width:2px;
    classDef bitOn fill:#d4edda,stroke:#28a745,stroke-width:2px,color:#155724;
    classDef bitOff fill:#e2e3e5,stroke:#6c757d,stroke-width:2px,color:#383d41;
    classDef labelText fill:none,stroke:none,font-weight:bold;

    style Byte fill:#fff,stroke:#333,stroke-width:2px;
    style Total fill:#fff,stroke:#333,stroke-width:2px;

    subgraph Byte [A Single Byte = 8 Bits]
        direction TB

        subgraph B0 [Bit 0]
            v0["Value: 1<br>(ON)"]:::bitOn
            d0["2^0 = 1<br>DESC: 2/2 = 1"]:::labelText
        end

        subgraph B1 [Bit 1]
            v1["Value: 1<br>(ON)"]:::bitOn
            d1["2^1 = 2<br>ASC: 2*1 = 2<br>DESC: 4/2 = 2"]:::labelText
        end

        subgraph B2 [Bit 2]
            v2["Value: 0<br>(OFF)"]:::bitOff
            d2["2^2 = 4<br>ASC: 2*2 = 4<br>DESC: 8/2 = 4"]:::labelText
        end

        subgraph B3 [Bit 3]
            v3["Value: 1<br>(ON)"]:::bitOn
            d3["2^3 = 8<br>ASC: 2*2*2 = 8<br>DESC: 16/2 = 8"]:::labelText
        end

        subgraph B4 [Bit 4]
            v4["Value: 1<br>(ON)"]:::bitOn
            d4["POWER: 2^4 = 16<br>ASC: 2*2*2*2 = 16<br>DESC: 32/2 = 16"]:::labelText
        end

        subgraph B5 [Bit 5]
            v5["Value: 0<br>(OFF)"]:::bitOff
            d5["2^5 = 32<br>ASC: 2*2*2*2*2 = 32<br>DESC: 64/2 = 32"]:::labelText
        end

        subgraph B6 [Bit 6]
            v6["Value: 0<br>(OFF)"]:::bitOff
            d6["2^6 = 64<br>ASC: 2*2*2*2*2*2 = 64<br>DESC: 128/2 = 64"]:::labelText
        end

        subgraph B7 [Bit 7]
            v7["Value: 0<br>(OFF)"]:::bitOff
            d7["2^7 = 128<br>ASC: 2*2*2*2*2*2*2 = 128<br>DESC: 256/2 = 128"]:::labelText
        end
    end

    subgraph Total [if all bits 'enabled']
        subgraph subtotal
            128+64+32+16+8+4+2+1
            d8["255"]:::labelText
        end
    end

    %% Invisible link to force Total under Byte
    Byte ~~~ Total

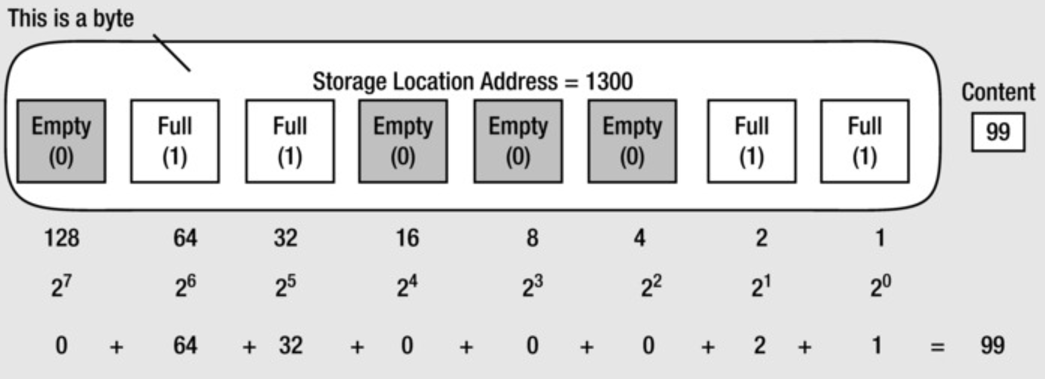

If diagrams aren’t your thing, then here’s a traditional image representation:

Think of a byte as a small control panel containing a row of eight individual light switches, and each of those switches is a bit. A bit can only ever be in one of two states: turned off (represented by a 0) or turned on (represented by a 1). By flipping different combinations of these eight switches on and off, a single byte can create 256 unique patterns. In computer engineering, we use these distinct patterns to represent everything from letters and numbers to specific status flags in a program.

Defining Bit Flags

You can utilize the bitwise OR assignment operator (|=) to selectively flip these individual bit switches ‘ON’ (setting them to 1). We can then use this “bit shifting” approach to combine multiple status flags within a single integer.

So for our example, each status was assigned a unique power of 2 using bit shifting (1 << iota). This ensured each flag only affected a single bit:

• StatusActive has the binary value 0001 (1 << 0 == 1 in decimal).
• StatusAdmin has the binary value 0010 (1 << 1 == 2 in decimal).
• StatusBanned has the binary value 0100 (1 << 2 == 4 in decimal).
• StatusVerified has the binary value 1000 (1 << 3 == 8 in decimal).

Setting Statuses

The following example combines two separate status flags:

userStatus |= StatusActive | StatusVerified

In binary, this combination (0001 + 1000) results in 1001 (or 9 in decimal; the earlier diagram/image showed a byte and its first bit is 1 and its fourth bit is 8: 1+8 is 9), which means both the “active” and “verified” flags are set.

Adding and Removing Flags

The following example sets the “admin” bit without affecting the other bits, resulting in 1011 (11 in decimal):

userStatus |= StatusAdmin

Comparing Statuses

Once userStatus has combined flags we can use the & operator to perform a bitwise AND operation, which means it compares each bit of two integers. For each bit position, if both bits are 1, the result at that position will be 1; otherwise, it will be 0.

So what happens when we compare userStatus&StatusAdmin != 0?

Well, StatusAdmin is a bit flag defined as 1 << 1, which results in 0010 in binary. This means that StatusAdmin occupies the second bit position in the binary representation of an integer. When we do userStatus&StatusAdmin, we’re effectively “masking” all bits except for the one represented by StatusAdmin (this is known as bit masking).

When we perform userStatus&StatusAdmin, we get a result where only the bit corresponding to StatusAdmin remains (and is set to 1 if that bit was already set in userStatus). If this result is non-zero (!= 0), it means the StatusAdmin bit is set in userStatus. If it’s zero, then StatusAdmin is not set in userStatus.

If we look at the code in bitwise.go we’ll see userStatus is initially set to include StatusActive and StatusVerified, so userStatus is 1001 in binary (which is 9 in decimal). Remember StatusActive occupied the first bit position (0001), while StatusVerified occupied the fourth bit position (1000) so if setting both flags we get the combined 1001.

Next, we add the StatusAdmin flag with userStatus |= StatusAdmin, making userStatus now 1011 in binary (which is 11 in decimal). When we check if StatusAdmin is set using userStatus&StatusAdmin != 0 we get back 2 from userStatus&StatusAdmin (which is 0010 in binary) because we’ve bit masked the other bits that might have been turned on (if you recall, using & turns each bit to zero except for those bits that were 1 in both numbers being compared), in order to reveal whether the StatusAdmin bit was set on or not (i.e. 0 != 2 so we know this person is an admin).
